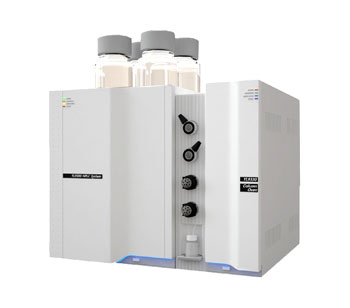

YL9300 HPLC is an integrated HPLC system in a compact design including vacuum degasser (mixer), quaternary pump and UV/Vis detector at a competitive price. This system provides greatly stabilized baseline with a substantially minimized noise level. Its newly innovated focus lens in a monochromator reduces mobile phase RI effect effectively which leads the decreased influence by a solvent peak.


- Integrated LPG HPLC system : Vacuum Degasser + Quaternary Pump + UV Detector
- Increased mobile phase composition efficiency
- Decreased solvent peak influence
- Greatly stabilized baseline with substantially minimized noise level
- Simple Maintenance: Pump & Vacuum Degasser modules in a sliding drawer
- High speed data process by network (LAN) communication
- Competitive or even lower price than others

Vacuum Degasser
- Number of channel: 4 CHs
- Maximum flow rate: 10 ml/min per channel
- Internal volume per channel: 925ul per channel
- Materials in contact with solvent: Teflon AF, PEEK and Glass-filled PTFE

Quaternary Pump
- Flow range: 0.001-5ml/min (Standard)
                         0.001-10ml/min (Option)
- Flow rate accuracy: ≤ ±1% at 1ml/min
- Flow rate precision: < ±0.1% RSD at 1ml/min
- Number of eluent lines: 4
- Pressure pulsation: ≤±0.5% at 1ml/min>

UV/VIS Detector
- Wavelength range: 190~600 nm (Standard) /190~900nm (Option)
- Bandwidth: 5 nm
- Noise level: < ±0.35 X 10-5 Abs/min, 254nm, dry cell

System Information
- Data communications: LAN
- Dimensions: 375 X 470 X 545mm (W x H x D)
- Weight: 27 Kg
